LIGNE DE VIE VERTICALE SUR MUR
VERTIGRIP ON WALL
New

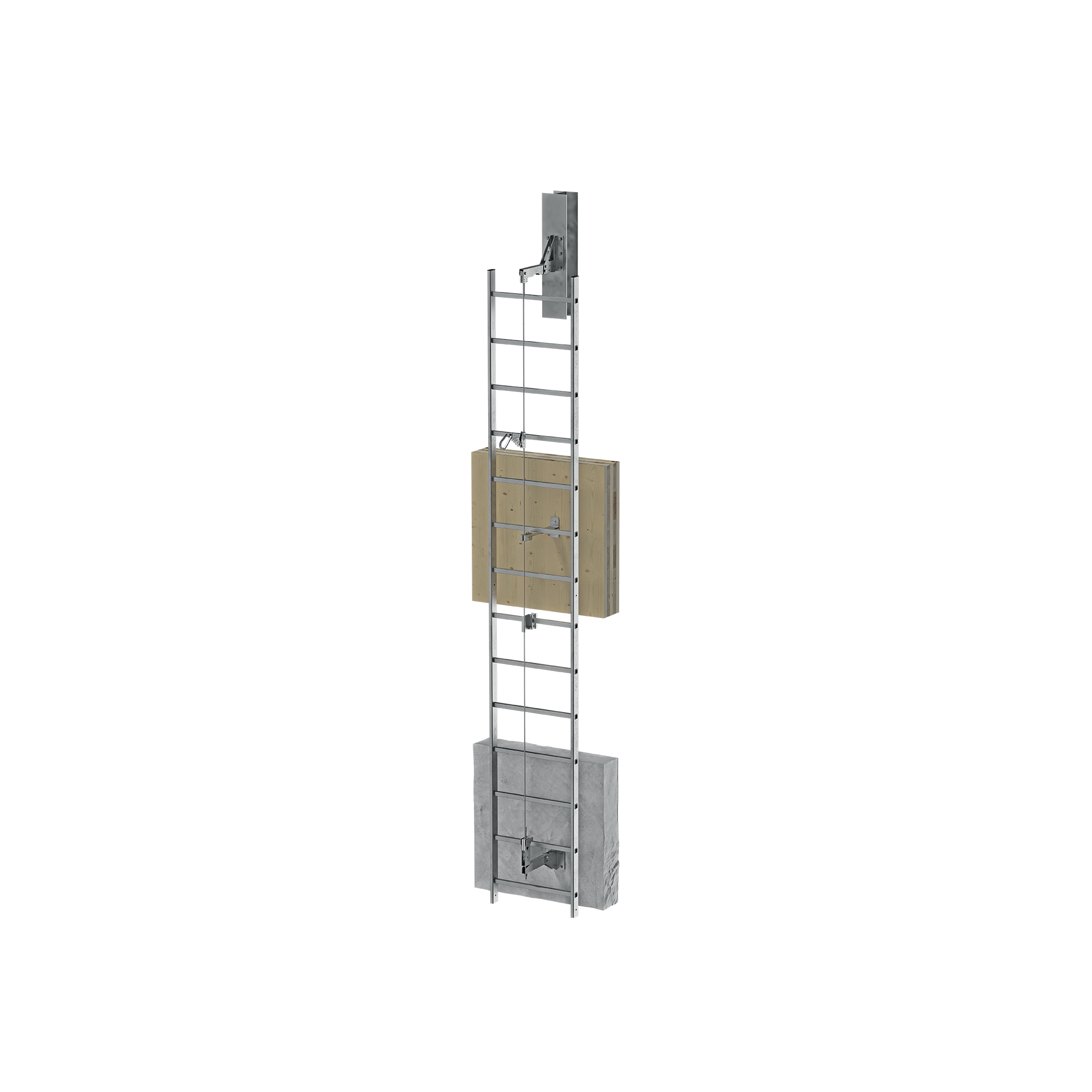

VERTIGRIP ON WALL est la ligne de vie verticale murale qui peut être utilisée comme une alternative valable dans les situations où il n’est pas possible de monter la ligne de vie directement sur l’échelle. Elle peut être facilement installée sur les supports en bois, acier ou béton.
Ligne de vie murale VERTIGRIP ON WALL : l’alternative à la ligne de vie sur échelle.
La ligne de vie verticale murale VERTIGRIP ON WALL permet de régler la distance entre la ligne de vie et le mur. Elle peut être installée sur des murs inclinés avec un angle jusqu’à 15° par rapport à la verticale.
Documentation
Fiche technique
|
|
|---|---|
Certifications
|
|
Déclaration de conformité
|
|
Consignes de sécurité, mode d’emploi et installation VERTIGRIP
|
|
Consignes de sécurité, mode d’emploi et installation VERTSLIDE
|
|
Déclaration de pose et inspection
|
Instructions de pose
| Manuel d'installation |
|---|
COMPONENTI PRINCIPALI PER LINEA VITA VERTICALE
| CODE | description | pcs. |
|---|---|---|
| VERTSPEAR | set for vertical lifeline with clamps and Tensioner | 1 |
| CABLE | Ø8 7 x 7 | 1 |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | 1 |
| VERTSPEARA4 | set for A4 VLL | 1 |
| VERTOPW | upper anchor system for vertical lifeline on structure | 1 |
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | 1 |
SUPPORT POUR LIGNE DE VIE VERTICALE SUR ÉCHELLE
| CODE | description | matériau | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTOPW | upper anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 2 | 1 |
| VERTOPWA4 | upper anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 2 | 1 |
| VERTBASEW | lower anchor system for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 | 1 | 1 |
| VERTBASEWA4 | lower anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 | 1 | 1 |
| VERTINTW | intermediate bracket for vertical lifeline on structure | AISI 304 stainless steel grade 1.4301 – ABS | 1 | 1 |
| VERTINTWA4 | intermediate anchor system for vertical lifeline on A4 structure | AISI 316 stainless steel grade 1.4401 – ABS | 1 | 1 |
ACCESSOIRES POUR LIGNE DE VIE VERTICALE
| CODE | description | matériau | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| CODE | description | pcs. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
Composé de
