GARDE-CORPS POUR FIXATION VERTICALE ET VERTICALE DISTANCÉE
GUARD V | GUARD VD
Les garde-corps GUARD V et GUARD VD sont conçus pour être installés sur des structures verticales.

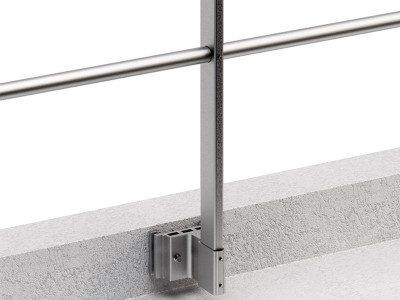

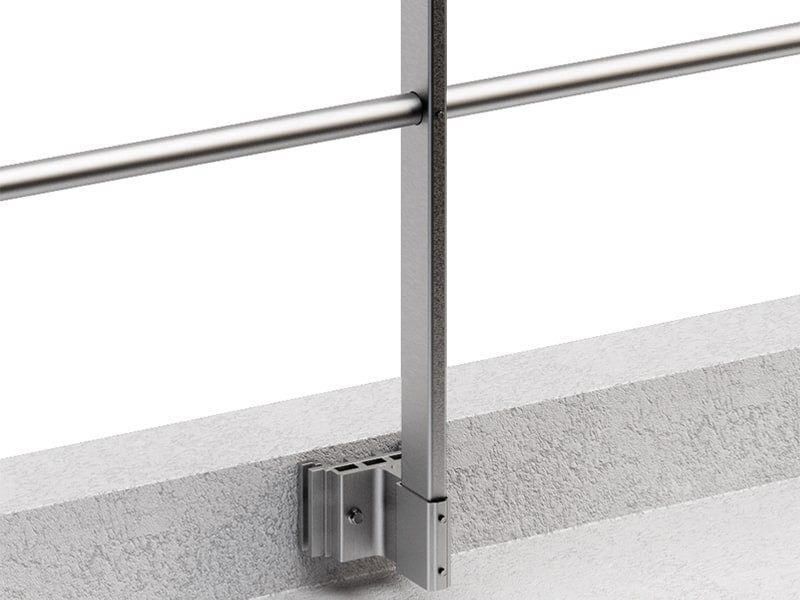

Le montage est rapide et simple ; durant l’installation, les montants peuvent être distancés du mur sur lequel il est installé, au moyen de cales en aluminium. Les composants se fixent par encastrement et avec des vis autoforeuses fournies. La version GUARD VD inclut une plaque de base pour la fixation murale dépassant de 6 centimètres.

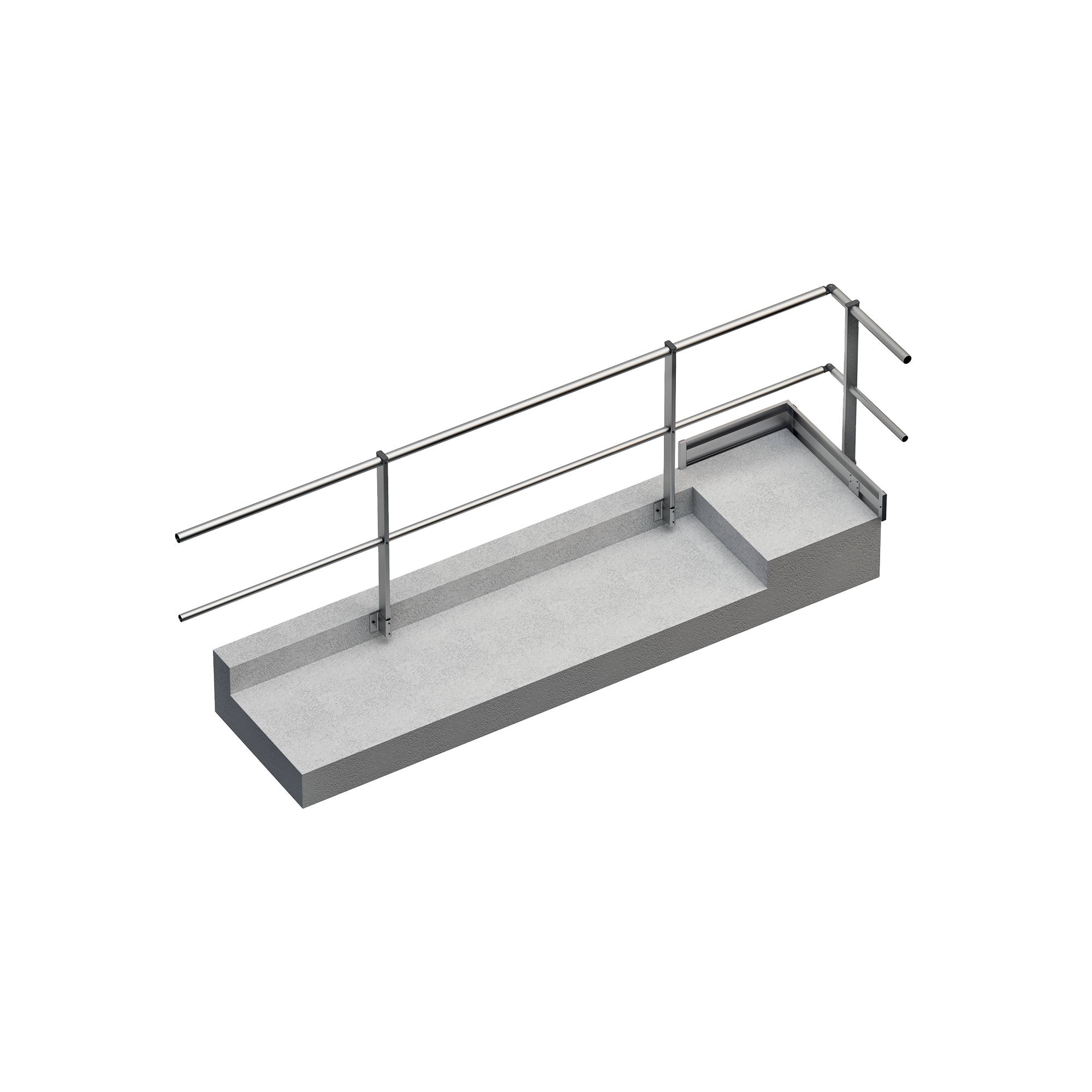

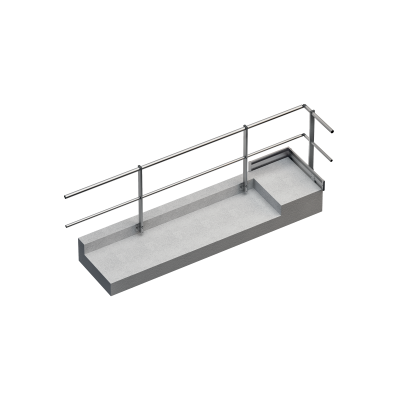

GUARD V et GUARD VD, garde-corps pour fixation verticale et verticale distancée.
Documentation
Fiche technique
|
|---|
Instructions de pose
| Manuel d'installation |
|---|
LISSES ET SOUS-LISSES
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP130 | straight upright H = 1300 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
AXE GARDE-PIEDS ET ACCESSOIRES - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|

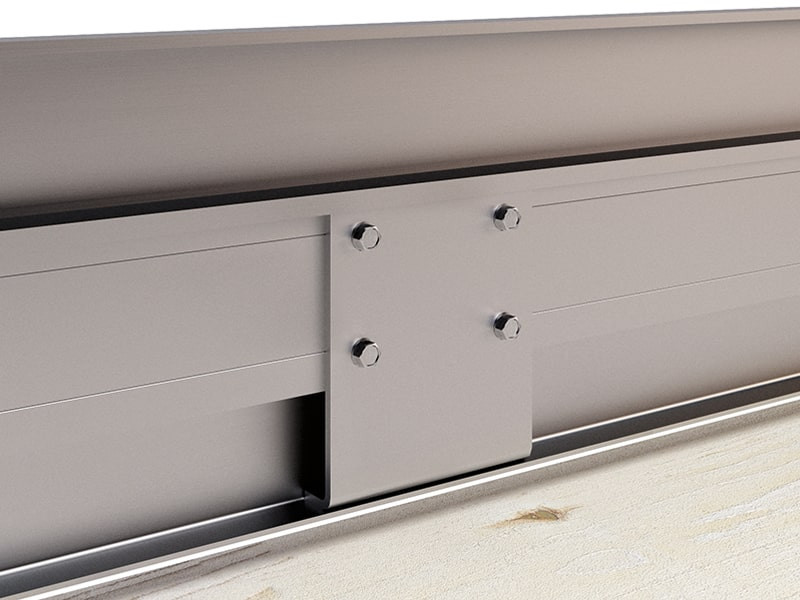

| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
BASES STANDARDS - GUARD V/GUARD VD
| CODE | version | pcs. |
|---|---|---|
| RBGBASEV | - | 1 |
| RBGBASEVD | - | 1 |
| RBGDIST | - | 1 |
ACCESSOIRES
| CODE | description | pcs. |
|---|---|---|

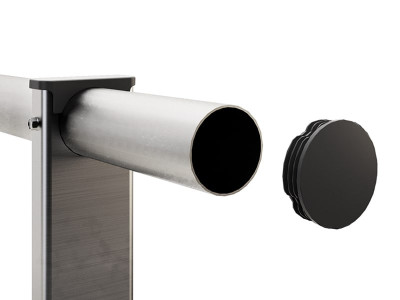

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VIS DE FIXATION - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4832 | stainless steel self-drilling screw 4,8 x 32 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
