GARDE-CORPS AUTOPORTANT
GUARD W

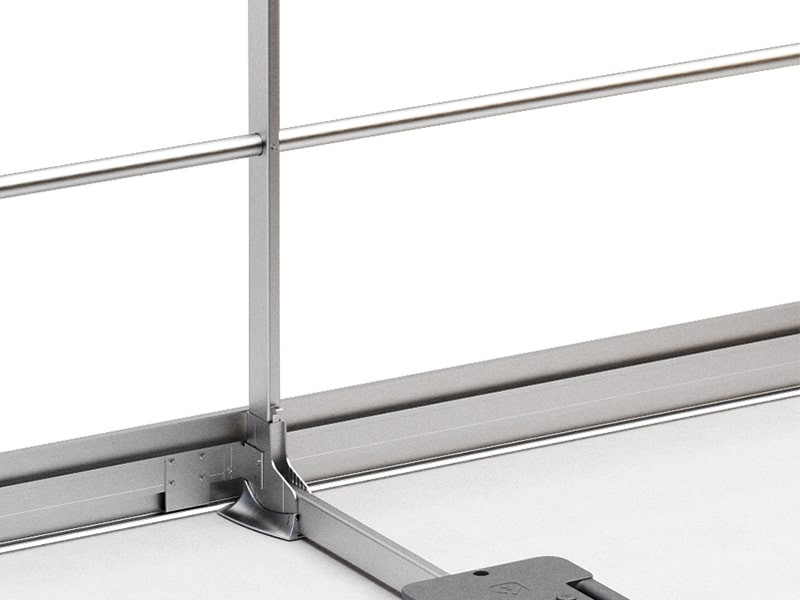

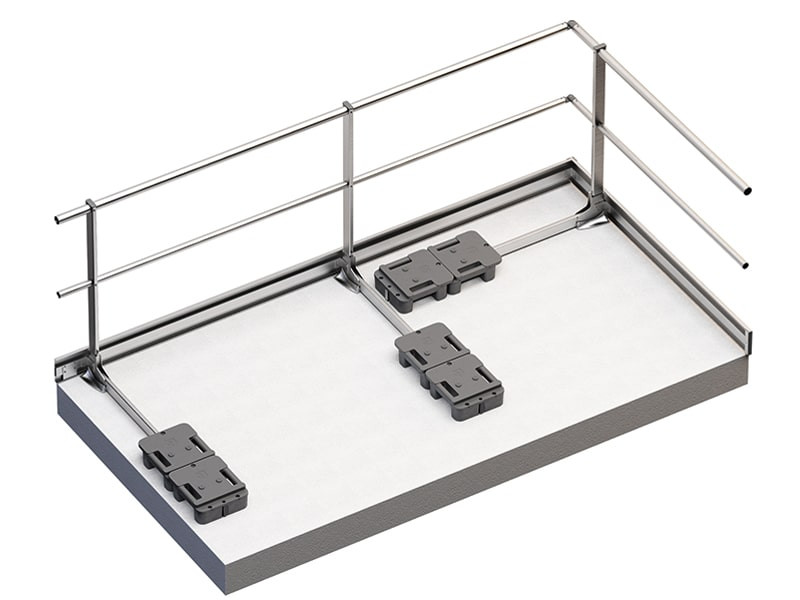

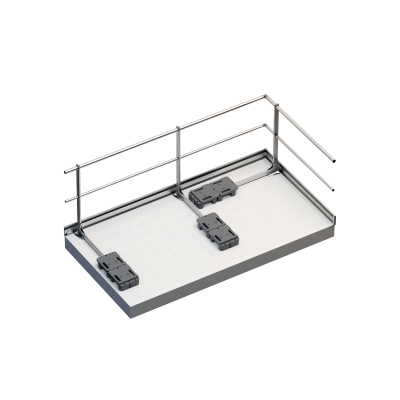

GUARD W est le garde-corps autoportant qui, grâce aux lests revêtus en plastique fournis, ne nécessite pas de percer la structure pour l'installation, préservant ainsi la couche imperméable.
Les lests ergonomiques facilitent l'installation et le transport, et le montage est simple et rapide. Les composants se fixent par encastrement et avec des vis autoforeuses fournies. En alliage d’aluminium, le garde-corps est extraordinairement léger.
GUARD W, le garde-corps autoportant qui préserve la couche imperméable.
Documentation
Fiche technique
|
|---|
Instructions de pose
| Manuel d'installation |
|---|
LISSES ET SOUS-LISSES - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
MONTANTS - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
AXE GARDE-PIEDS ET ACCESSOIRES - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBW | support for toe board H = 150 mm for GUARD W | 1 |
BASES STANDARDS - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGBASEW | base for self-supporting GUARD W straight with support leg | 1 |
| RBGBASEWE | locking wedge for GUARD W (spare part) | 1 |
| RBGWEIGHT | plastic counterweight 12,5 kg for GUARD W | 1 |
| RBGBASEWI | base for self-supporting GUARD W inclined with support leg | 1 |
| RBGBASEWIFCR | support leg for 25° right-hand bend inclined strut | 1 |
| RBGBASEWIFCL | support leg for 25° left-hand bend inclined strut | 1 |
ACCESSOIRES
| CODE | description | pcs. |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
VIS DE FIXATION - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4850 | stainless steel self-drilling screw 4,8 x 50 mm | 25 |
| RBGBASEWFKIT | kit for joining RBGBASEWF and RBGBASEWFR / RBGBASEWFL | 1 |
KIT CANCELLETTI DI SICUREZZA
| CODE | description | pcs. |
|---|---|---|
| RBGGATEWISUP | support for inclined strut gate | 1 |
| RBGGATE600 | safety door 500 mm height with hinges assembled L = 600 mm | 1 |
| RBGGATE1100 | safety door 500 mm height with hinges width L = 1100 mm | 1 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
